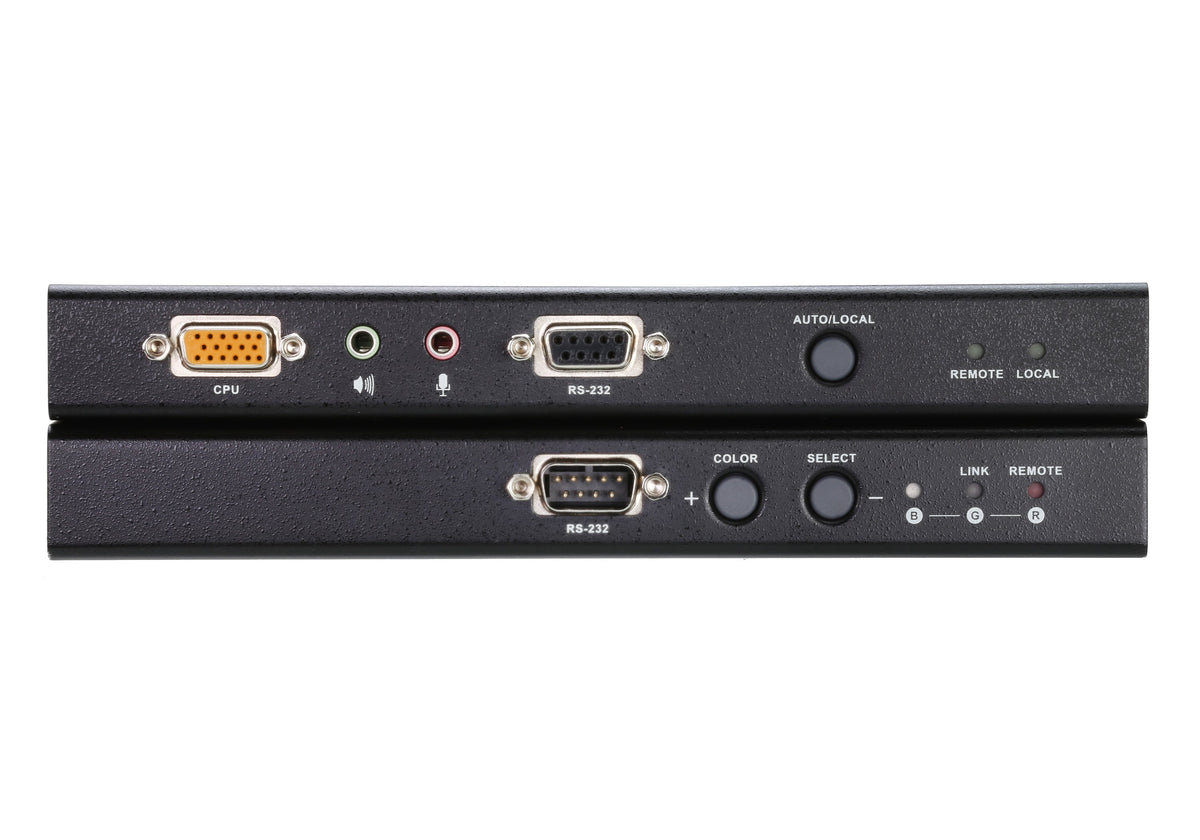

ATEN VGA USB 300M EXTENDER 1.8 kg

Regular price £321.97£386.36 (VAT Excl.)(VAT Incl.)

  • 300m Remote Control Power

Vendor:Aten SKU: CE770 Barcode: 4710423776432

Product Specification

  • Extends USB VGA computer control up to 300 meters
  • Deskew technology corrects RGB signal delay
  • Dual console operation (local and remote access)
  • Auto Signal Compensation for stable video quality
  • Supports stereo audio and microphone transmission
  • RS-232 connectivity for serial devices
  • High resolution VGA output support
  • Hot-pluggable with no software installation required
  • Built-in ESD and surge protection

Box Content

  • 1 × ATEN CE770L Local Unit
  • 1 × ATEN CE770RQ Remote Unit
  • 1 × Custom VGA/USB/Audio KVM Cable (1.8m)
  • 2 × Power Adapters
  • 1 × Mounting Kit

Technical Features

  • Brand: ATEN
  • Model: CE770
  • Product Type: USB VGA/Audio Cat 5 KVM Extender
  • Maximum Distance: Up to 300m via Cat5e cable
  • Video Resolution: 1920 × 1200 @ 60Hz (150m); 1280 × 1024 @ 60Hz (300m)
  • Video Interface: VGA (HDB-15)
  • USB Support: Keyboard & Mouse (USB Console)
  • Audio Support: Stereo speaker & microphone
  • RS-232 Port: Yes (Serial device support)
  • Deskew Adjustment: Automatic RGB signal synchronization
  • Signal Compensation: Auto Signal Compensation (ASC)
  • Unit Connection: RJ-45 (Cat5e/6)
  • Power Input: DC Adapter
  • Operating Temperature: 0°C – 50°C
  • Storage Temperature: −20°C – 60°C
  • Humidity: 0–80% RH (Non-condensing)
  • Housing: Metal
  • Installation: Rack mountable / Plug-and-Play

Description

The ATEN CE770 USB VGA/Audio Cat 5 KVM Extender with Deskew is designed to extend computer control over long distances while maintaining reliable video and audio performance. Using a single Cat5e cable, it connects a local computer to a remote console up to 300 meters, making it ideal for control rooms, factories, digital signage, and security installations. The built-in Deskew function automatically synchronizes RGB signals to eliminate color distortion caused by long cable runs. With Auto Signal Compensation (ASC) and manual RGB tuning, the extender ensures stable and clear image quality. Dual console operation allows simultaneous control from both local and remote locations. RS-232 support enables integration with serial devices such as touchscreens or barcode scanners, while plug-and-play installation removes the need for software configuration.
