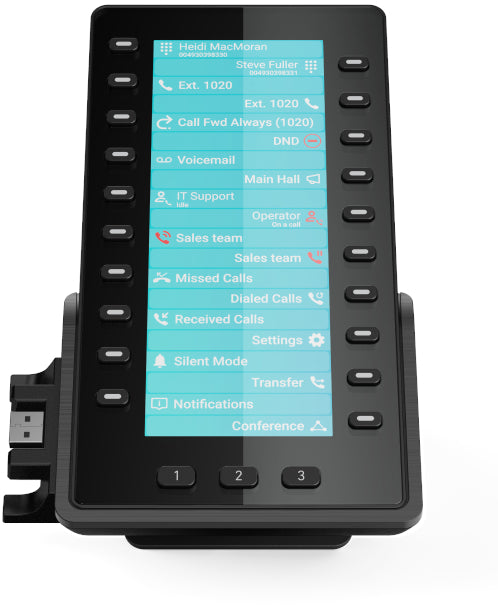

Snom D8C Expansion Module

Regular price £121.40£145.68 (VAT Excl.)(VAT Incl.)


  • Multi-Page Display
  • Easy USB Plug and Play
  • 60 Programmable Buttons on 3 Pages

Vendor:Snom SKU: snomD8C Barcode: 4260059583534

Product Specification

  • Display: 6.8 Zoll (17.2 cm) TFT Liquid Crystal Display
  • Expansion Modules: Add up to 3 D8C Expansion Modules to Each Telephone
  • SmartDisplay: Multi-Page Display
  • SmartLabel: Easy USB Plug and Play
  • Configuration: Configurable via Host Telephone
  • Programmable Buttons: 60 Programmable Buttons on 3 Pages

Box Content

  • Snom D8C Expansion Module
  • Footstand
  • Screws Quick Installation Guide

Documents

Technical Features

  • Display and Indicators
  • Display - TFT Liquid Display (LCD), True Colour, Backlit
  • Size - Diagonal - 172mm (6.86 Inches)
  • Size (W x H) - 60mm x 16100
  • Resolution - 1,280 x 480 Pixels
  • 23 LED Indicators - Function Key Status Indication - 20 Multicolour LEDs, Page Key Indication - 3 Green LEDs
  • 23 Hard Keys in Total - 20 SmartLabel Keys (With Multicolour LED), Key Mapping of up to 60 Functions (20 Keys) x 3 Pages, 3 Dedicated Function Keys - Page 1/2/3
  • Power Options - USB Powered - 5V
  • Power Adapter - When More than One D8C Module is used with One Phone, a Power Supply Unit Needs to be Connected to the Second Module (Power Supply Unit Not Included)
  • Wired Interfaces - Daisy Chaining, USB Powering, USB 2.0 Type-A Port, USB 2.0 Type-A Plug
  • Power Adapter - Coaxial Power Connector (Socket)
  • Plug and Play
  • Configurable via Host Phone
  • Customisation - Theme and Icon Support, Custom Background Image Support

Description

The Snom D8C is an expansion module for all devices in the D8xx series. The expansion module has a large, high-resolution colour display with a very clear user interface. Connected to the phone via USB via plug & play, the Snom D8C expands the phones in the D8xx series with another large screen and a wide range of application options.  The 20 physical (60 virtual) programmable LED Function Keys let you quickly identify the status of a colleague, forward calls, and more. Up to three of the Snom D8C Expansion Modules can be added to each Telephone for a more comprehensive overview. Configuration of the Snom D8C is straightforward and can be done either via the Telephone or via the Snom Web Interface.
