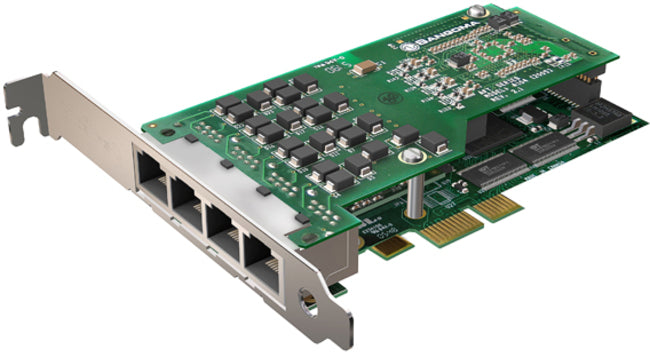

Sangoma A104E 4 Port T1/E1/J1 PCIe Card 0.52 kg

Regular price £1,181.95£1,418.34 (VAT Excl.)(VAT Incl.)

  • Port Count (4 Digital Spans)
  • Digital Standard (T1/E1/J1)
  • Voice Capacity (Up to 120 Voice Calls)

Vendor:Sangoma SKU: A104E Barcode: 680031526184

Product Specification

  • SKU: 02-102032
  • Shop By Brand: Sangoma
  • UPC: 680031526184
  • Model: A104-EKIT
  • MPN: A104-EKIT
  • MSRP: $1,987.00
  • # of Digital Ports: 4
  • Digital Signaling Type: T1, E1, J1
  • # of FXS Ports: 0
  • # of FXO Ports: 4
  • Bus Type: PCI-Express
  • Echo Cancellation: No
  • Low Profile: No
  • Voice Signaling Methods: CAS, ISDN PRI, PRI, MFC/R2, ATM, PPP, SS7, BSC, HDLC

Box Content

  • A104 PCI Card
  • RJ45 Cable(s)
  • 2U Mounting Clips
  • Installation Guide
  • Warranty Card

Documents

Technical Features

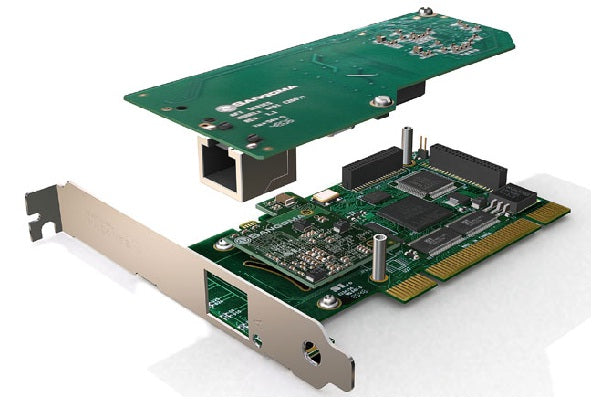

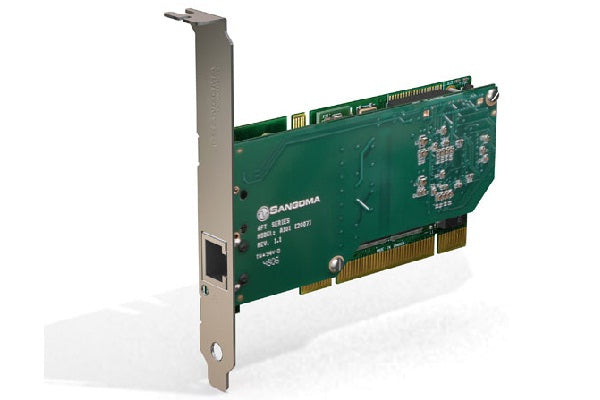

  • Model Options: Available as Single T1/E1 port (A101) or Dual T1/E1 port (A102) with daughterboard
  • Intelligent Hardware: Downloadable FPGA programming with multiple operating modes including T1/E1 and fractional T1/E1, single channel HDLC per line
  • Channelized Versions: Available as A101-C or A102-C supporting up to 64 DS0s for voice or HDLC data
  • Power Consumption: 520mA at 5V
  • Reliability: MTBF greater than 1 million hours (calculated)
  • Compatibility: PCI 32-bit 5V and 64-bit 3.3V compatible
  • Operating Temperature: 0°C to 45°C
  • Configuration: All setup and configuration via software or machine BIOS
  • DSU/CSU: Fully software-configurable with built-in test modes and remote monitoring
  • Line Decoding: Supports HDB3, AMI, B8ZS
  • Framing: CRC4, non-CRC4, ESF, D4 T1/E1
  • Clocking Modes: Normal and Master
  • Dimensions: 2U form factor (120mm x 55mm)

Description

Obtainable in both PCI (A104) and PCI Express (Sangoma A104E) form factors, The A104 provides up to 16.4Mbps of full duplex data throughput or 120 voice calls over four T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization. As part of Sangoma's AFT range of products, the A104 makes use of the same high performance PCI interface that has been deployed in large quantities all over the world.
