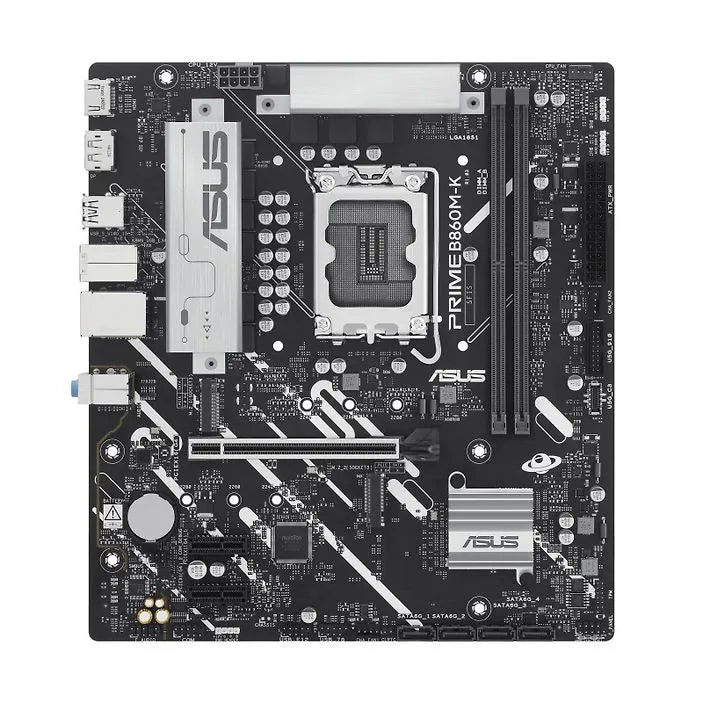

ASUS 1851 PRIME B860M-K M-ATX 1.07 kg

Regular price £121.62£145.94 (VAT Excl.)(VAT Incl.)

  • LED pin header
  • Supports Intel Core

Vendor:Asus SKU: 90MB1JT0-M0EAY0 Barcode: 4711387808498

Product Specification

  • Processor Manufacturer: Intel
  • Compatible Processor Series: Intel Core Ultra (Series 2)
  • Processor Socket: LGA 1851
  • Supported Processor Sockets: LGA 1851
  • Maximum Internal Memory: 128 GB
  • ECC: No
  • Non-ECC: Yes
  • Supported Memory Types: DDR5
  • Memory Channels: Dual-channel
  • Unbuffered Memory: Yes
  • Memory Slots Type: DIMM
  • Number of Memory Slots: 2
  • Supported Memory Clock Speed (Max): 8800 MHz
  • ECC Compatibility: Non-ECC
  • Width: 244 mm
  • Depth: 222 mm
  • Ethernet LAN: Yes
  • Bluetooth: No
  • Wi-Fi: No
  • Ethernet Interface Type: 2.5 Gigabit Ethernet
  • USB 2.0 Connectors: 2
  • S/PDIF Out Connector: Yes
  • CPU Fan Connector: Yes
  • Number of COM Connectors: 1
  • ATX Power Connector (24-pin): Yes
  • Number of Chassis Fan Connectors: 2
  • Front Panel Audio Connector: Yes
  • TPM Connector: Yes
  • EPS Power Connector (8-pin): Yes
  • USB 3.2 Gen 1 Connectors: 2
  • Number of SATA III Connectors: 4
  • USB 3.2 Gen 2 Connectors: 0
  • Front Panel Connector: Yes
  • 12V Power Connector: Yes
  • RGB LED Pin Header: Yes
  • PS/2 Ports Quantity: 1
  • USB 2.0 Ports Quantity: 2
  • Ethernet LAN (RJ-45) Ports: 1

Box Content

  • Asus PRIME B860M-K LGA 1851 mATX Motherboard

Technical Features

  • CPU Support: Supports Intel Core Ultra (Series 2) processors with an LGA 1851 socket
  • Chipset & Form Factor: Intel B860 chipset in a Micro-ATX form factor
  • Memory: Up to 128 GB dual-channel DDR5 memory
  • Storage: Two M.2 slots and four SATA III ports
  • Expansion Slots: One PCIe x16 slot and two PCIe x1 slots
  • Networking: 2.5GbE LAN port for wired connections
  • Display Outputs: HDMI and DisplayPort for integrated graphics
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Cooling Headers: One CPU fan header and two chassis fan headers
  • Lighting: One RGB LED pin header for case lighting

Description

The ASUS PRIME B860M-K is a Micro-ATX motherboard engineered for the LGA 1851 socket, providing compatibility with Intel Core Ultra (Series 2) processors. Built on the Intel B860 chipset, it serves as a foundation for compact PC systems. The board features two DDR5 DIMM slots that support a maximum of 128 GB of dual-channel memory, reaching speeds up to 8800 MHz. Power delivery is managed through standard 24-pin ATX and 8-pin EPS connectors, designed to supply stable power to the system components during operation.
