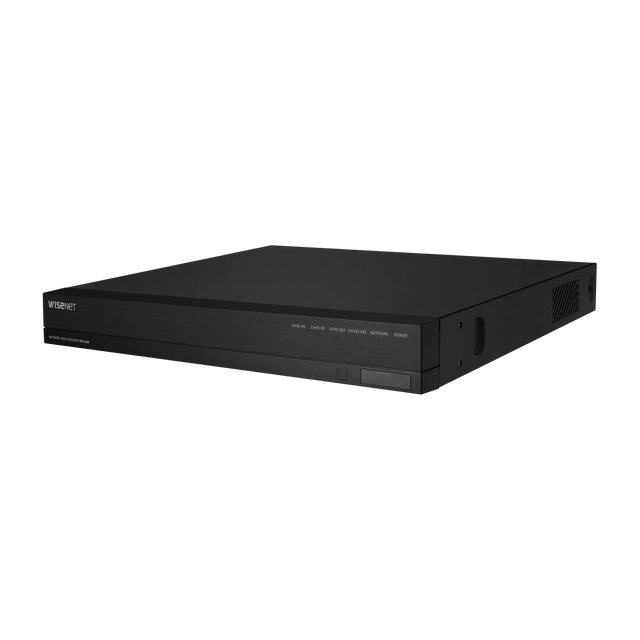

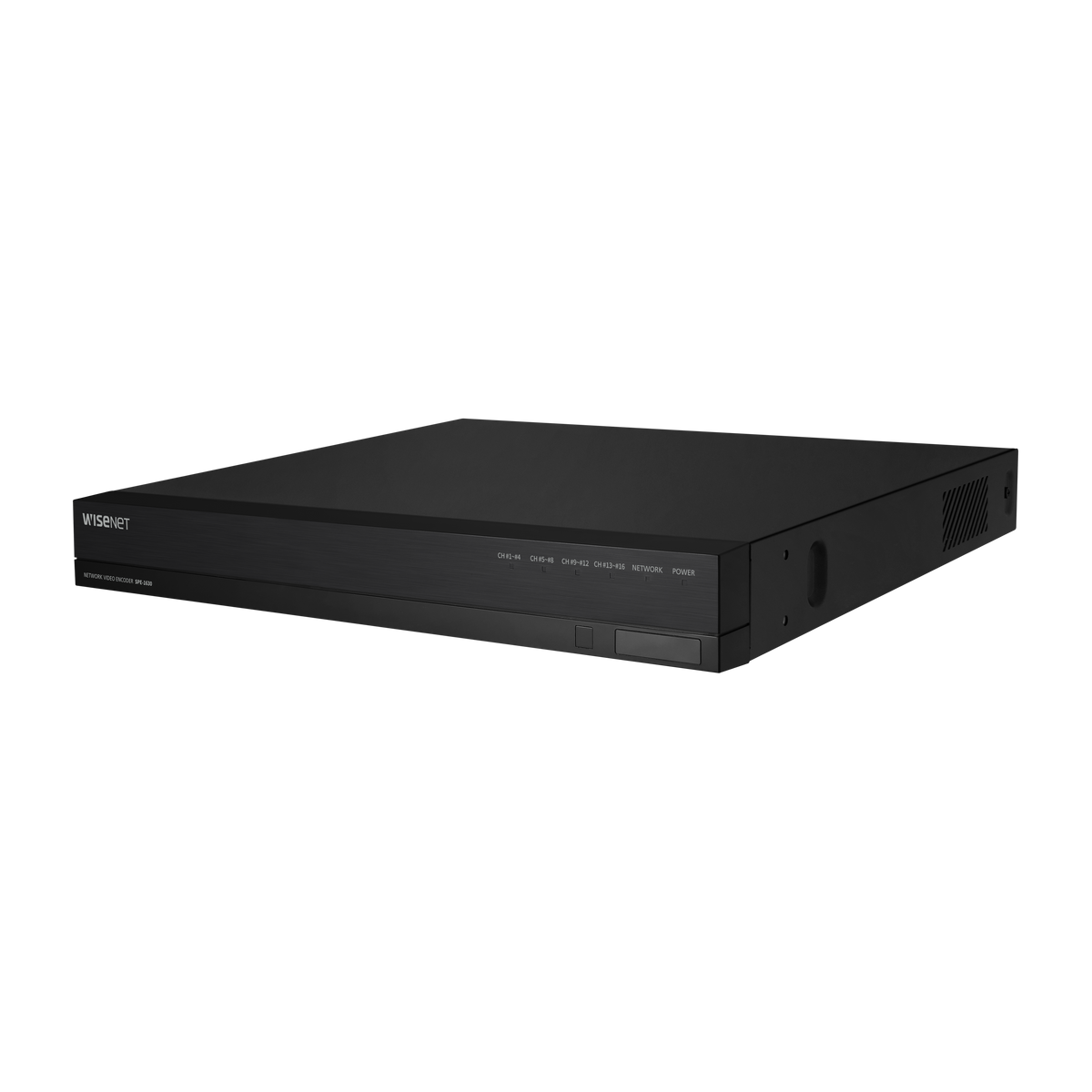

Hanwha SPE-1630 video servers/encoder 2560 x 1920 pixels 30 fps

Regular price £631.60£757.92 (VAT Excl.)(VAT Incl.)

  • ONVIF profile S support
  • HDMI video

Vendor:Hanwha SKU: SPE-1630 Barcode: 8801089218407

Product Specification

  • Motion Detection: Off / On
  • Privacy Masking: Off / On (4 rectangular zones)
  • De-Interlacing: Supported
  • Alarm I/O: 16 Input / 4 Output
  • Alarm Trigger: Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
  • Alarm Events: File Upload via FTP, E-mail
  • Audio I/O: 4 Line Input / 1 Line Output (1 NO/COM/NC, 3 NO/COM)
  • OSD: Title
  • Remote Control Interface: 1 EA RS-485 (Half Duplex)
  • RS-485 Protocol: SAMSUNG-T, PELCO-P/D
  • Coaxial Control: CVBS (Pelco-C), AHD, TVI, CVI

Box Content

  • Hanwha vision SPE-1630

Documents

Technical Features

  • Camera Resolution Support: Up to 5MP
  • Supported Protocols: AHD, CVI, TVI, CVBS (Auto detection)
  • Frame Rates: 5MP@12fps, 4MP@15fps, 2MP@30fps
  • PTZ Control: RS-485 interface & coaxial control
  • Codec Support: H.265, H.264, MJPEG with enhanced video encoding for lower bandwidth and storage
  • ONVIF Support: Profile S
  • HDMI Output: For 16 camera view
  • Alarm & Audio I/O: Supported
  • Installation: Rack mount brackets included
  • Multiple Streaming: Up to 3 profiles per channel
  • Ethernet: 1 RJ-45 10/100/1000 Base-T
  • Compliance: NDAA / FCC Compliant

Description

The Hanwha Vision SPE-1630 is a 16-channel network video encoder that converts analog CCTV (AHD, CVI, TVI, CVBS) signals to digital IP streams, allowing use of old cameras with new systems up to 5MP resolution, featuring H.265/H.264/MJPEG compression, multiple streams, HDMI output for local viewing, alarm I/O, and PTZ control, ideal for upgrading analog systems to IP without full replacement.
