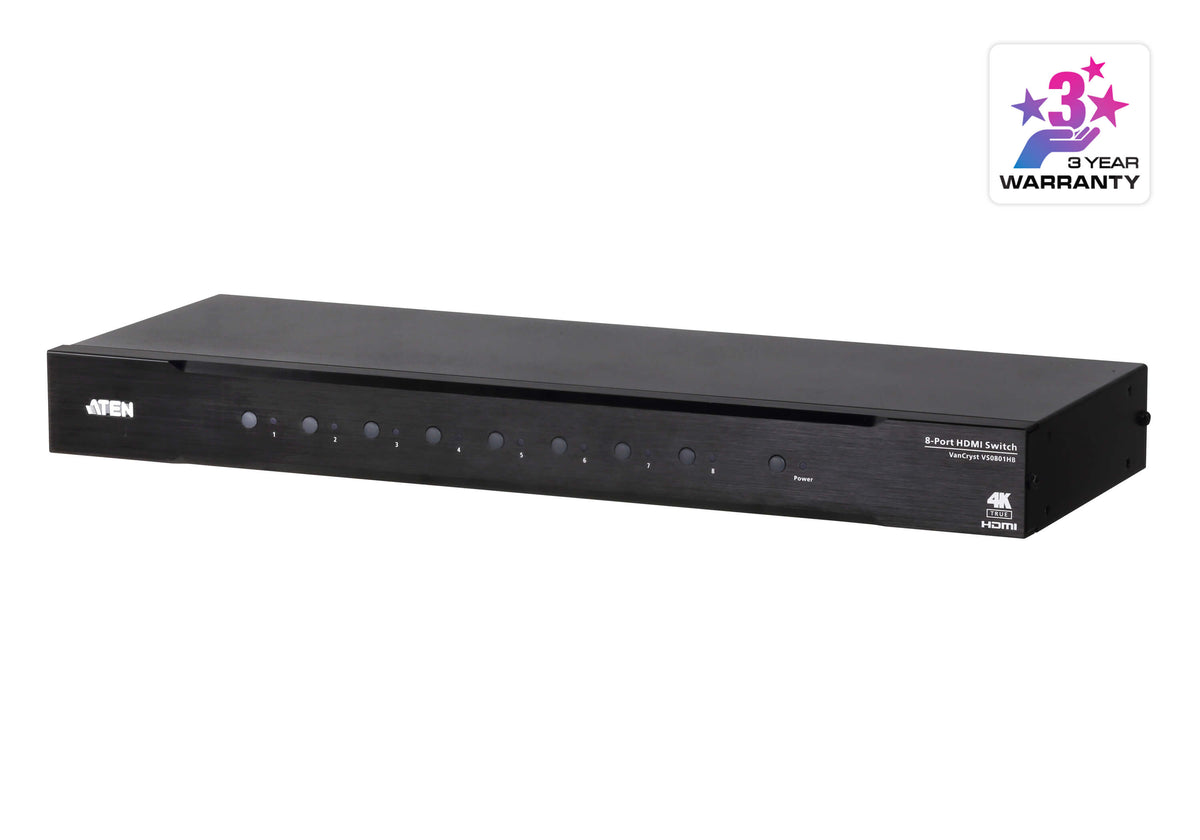

ATEN 8 Port HDMI Switch 4K 2.8 kg

Regular price £243.79£292.55 (VAT Excl.)(VAT Incl.)

  • Plug-and-play
  • Rack mountable

Vendor:Aten SKU: VS0801HB Barcode: 4719264646300

ATEN 8 Port HDMI Switch 4K is backordered and will ship as soon as it is back in stock.

Product Specification

  • Input Interfaces: 8 x HDMI Type A Female (Black)
  • Input Impedance: 100 Ω
  • Input Max Distance: 5 m at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Output Interface: 1 x HDMI Type A Female (Black)
  • Output Impedance: 100 Ω
  • Output Max Distance: 5 m at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Max Data Rate: 18 Gbps (6 Gbps per lane)
  • Max Pixel Clock: 600 MHz
  • Compliance: HDMI 2.0 (3D, Deep Color), HDCP 2.2, Consumer Electronics Control (CEC)
  • Max Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Control Interface (RS-232): 1 x DB-9 Female (Black); Baud Rate 19200, Data Bits 8, Stop Bits 1, No parity, No flow control
  • IR Port: 1 x Mini Stereo Jack Female (Black)

Box Content

  • 1x VS0801HB 8-port True 4K HDMI Switch
  • 1x IR Remote Control Unit
  • 1x IR Receiver Cable(1.8 m)
  • 1x Power Adapter
  • 1x Rack Mounting Kit
  • 1x User Instructions

Documents

Technical Features

  • Input Support: Allows up to 8 HDMI sources to be connected to one HDMI display
  • HDMI Standards: HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Video Quality: True 4K (4K x 2K @ 60 Hz 4:4:4) and 1080p (1920 x 1080 @ 60 Hz)
  • HDR Support: Supports HDR10+
  • Control Interface: Built-in bi-directional RS-232 serial port for system control
  • Switching Mode: Auto switching for automatic port selection
  • IR Support: Supports IR extension
  • Status Indicators: Clear LED indication of device status
  • Setup: Plug-and-play
  • Mounting: Rack mountable

Description

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
