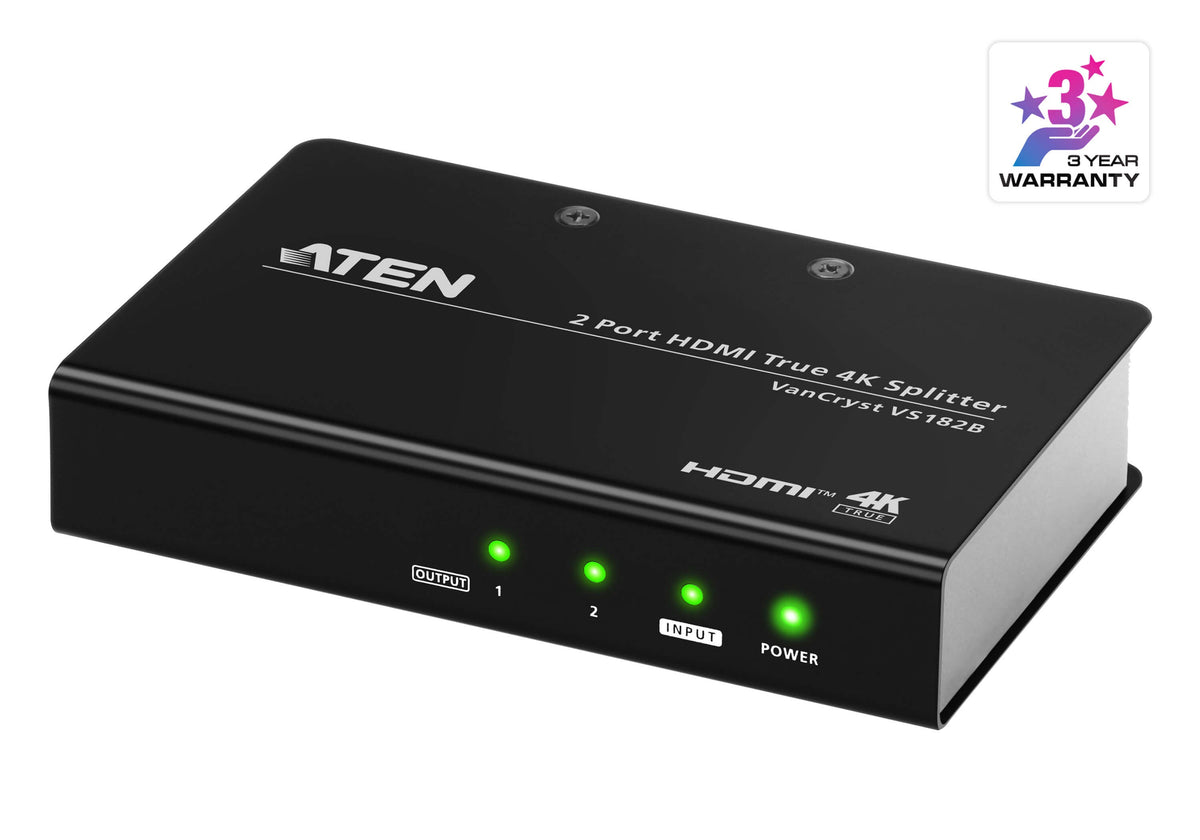

- Video Distribution: Connects one HDMI source to two HDMI displays at the same time
- HDMI Support: HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- HDR Support: Supports HDR10+
- Max Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- Transmission Distance: Up to 15 m (1920 x 1200) / 5 m (True 4K)
- Pixel Clock: Up to 600 MHz
- Data Rate: Up to 18 Gbps (6 Gbps per lane)
- LED Indicators: Power status and source device indication
- EDID Control: EDID Expert™ with DIP switch (Port 1, Default, Auto selection)
- Setup: Plug-and-play, no software installation required
