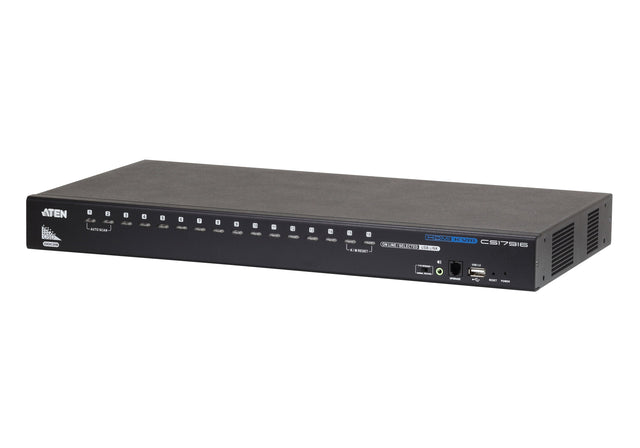

ATEN 16 Port HDMI KVMP 5.7 kg

Regular price £829.68£995.62 (VAT Excl.)(VAT Incl.)

  • Supports hot-plugging
  • Widescreen resolutions

Vendor:Aten SKU: CS17916 Barcode: 4719264641602

Product Specification

  • Firmware Upgrade Port: 1 x RJ11 Female
  • Power: 1 x DC Jack
  • USB Hub: 2 x USB Type A Female (1 x front panel, 1 x rear panel)
  • Port Selection: 16 x Pushbutton
  • Reset: 1 x Semi-recessed Pushbutton
  • Firmware Upgrade Switch: 1 x Slide Switch
  • USB Link LEDs: 16 (Green)
  • Power LED: 1 (Dark Green)
  • Online/Selected LEDs: 16 (Orange)
  • Keyboard/Mouse Emulation: USB
  • Video Support: 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
  • Scan Interval: 1 – 255 seconds (default: 5 sec.)

Box Content

  • 1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
  • 2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
  • 1x LIN5-04A2-J11G Firmware Upgrade Cable
  • 1x LIN2-418K-E12G Power Cord
  • 1x 0AD8-8005-40MG Power Adaptor
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions

Documents

Technical Features

  • Console Control: One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
  • HDMI Support: HDMI compatible
  • Cascading: Cascadable to two levels, supporting up to 256 computers
  • Multi-Display Feature: Supports stacking up to eight CS17916 units for multi-monitor setups (dual, triple, quad, or multi-display)
  • USB Hub: Built-in 2-port USB 2.0 hub
  • Computer Selection: Front panel pushbuttons, hotkeys, and multilingual OSD
  • Switching Control: Independent switching of KVM and USB focus
  • Configuration Backup: OSD Backup/Restore for administrator settings and user profiles
  • Firmware: Upgradable
  • Video Technology: Video DynaSync™ for optimized resolution and smooth switching
  • Video Quality: Up to 1080p / 1920 × 1200 @ 60 Hz support
  • Display Support: Supports widescreen resolutions
  • Audio Support: 2.1 channel surround sound with console audio ports on front panel
  • Auto Scan: Mode for monitoring all connected computers
  • HDCP Support: Compatible
  • OS Compatibility: Windows, Linux, Mac, Sun
  • Mouse Support: Mouse port emulation/bypass for broad compatibility
  • Keyboard Support: Full keyboard emulation plus Mac/Sun support

Description

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.
