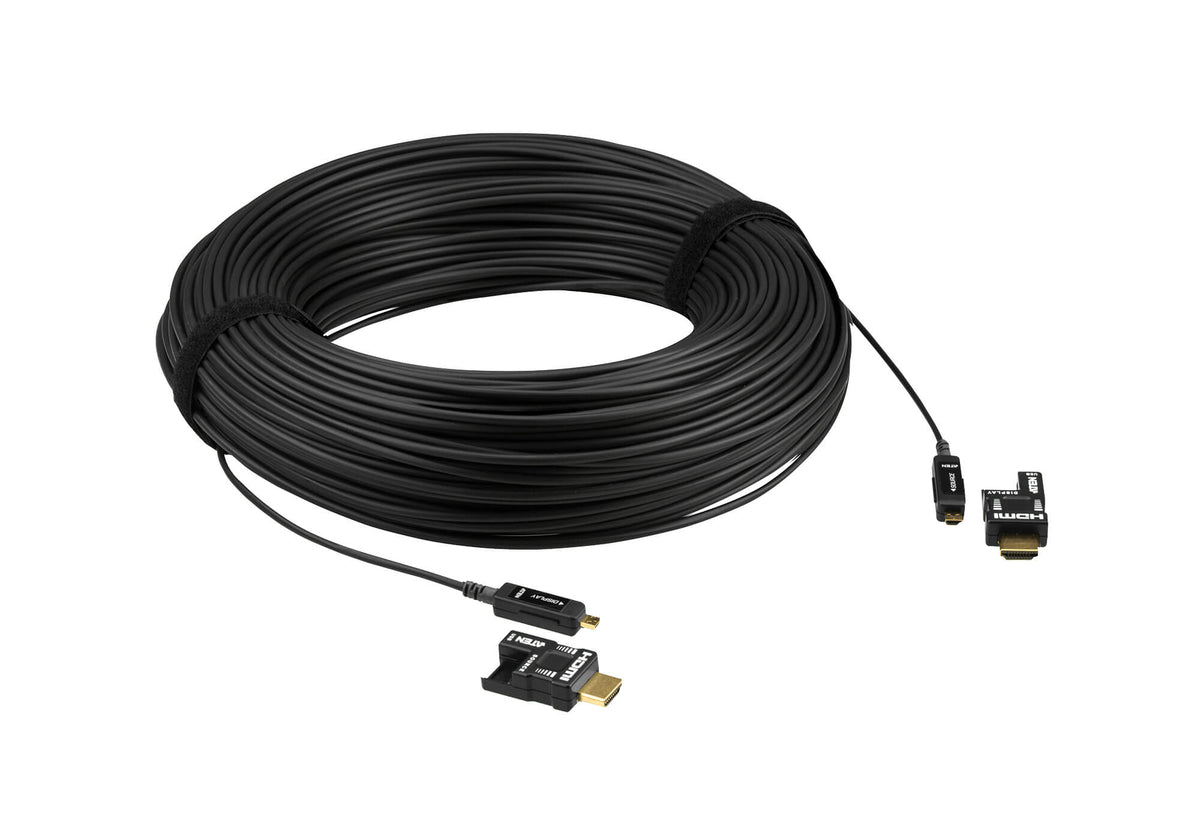

60M TRUE 4K HDMI ACTIVE OPTICAL 2.25 kg

Regular price £261.50£313.80 (VAT Excl.)(VAT Incl.)

  • 4K HDMI AOC
  • 60m Length
  • High Bandwidth
  • HDCP 2.2
  • Lossless Audio
  • EMI Resistant

Vendor:Aten SKU: VE7834A Barcode: 4710469341649

Product Specification

  • Certifications: CE / FCC / RoHS2 / UL CMP-OF
  • Notification: Bend Radius: 6mm (Min.), Connector Pull Strength: Max. 10kg (100N), Compression Load Resistance: Max. 50kg (500N), Reduced EMI & RFI, Jacketed
  • Material: UL Plenum (CMP-OF)
  • Conductor: 6 x Insulated Copper wire (28 AWG), 4 x Fiber
  • Cable Length: 60 m / 196.85 ft
  • Communication Signals: TMDS / HDCP 2.2 / EDID / CEC
  • Optional Power: Micro USB to USB cable (45cm), 5V, 0.148A
  • Audio: Input/Output: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
  • Cable Type: Hybrid optical with fiber and copper wire; High Speed HDMI Cable
  • Video Input Interfaces: 1 x HDMI 19-pin Type-A Male (gold-plated, pluggable, Black), 1 x HDMI Type-D Male (Black)
  • Video Output Interfaces: 1 x HDMI 19-pin Type-A Male (gold-plated, pluggable, Black), 1 x HDMI Type-D Male (Black)
  • Video Data Rate: Max 18 Gbps (6 Gbps per channel)
  • Pixel Clock: Max 600 MHz
  • Compliance: HDMI (3D, Deep Color, 4K, HDR), HDCP 2.2, Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0, Color Depth: 30 / 36 / 48 bit
  • Max Resolution / Distance: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 60 m
  • Power Consumption: DC5.3V:0.63W:2.15BTU/h
  • Environmental: Operating Temp: 0–50°C, Storage Temp: -20–70°C, Humidity: 0–85% RH Non-condensing
  • Physical Properties: Connector Case: ABS, Cable Outer Diameter: 3.4 mm ± 0.2 mm, Copper Conductor (28 AWG), Weight: 1.0 kg / 2.2 lb
  • Carton Lot: 5 pcs

Box Content

  • 1x VE7834 60M True 4K HDMI Active Optical Cable
  • 1x Wiring Tool
  • 2x Screws
  • 1x Micro USB to USB Cable
  • 1x Installation Notice
  • 1x User Instructions

Documents

Technical Features

  • HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 60 m
  • Supports HDR
  • Reduced EMI and RFI for lower noise interference
  • Supports multi-channel audio – Dolby TrueHD and DTS-HD Master Audio
  • Robust cable: max pulling strength 10 kg, compression load resistance 50 kg
  • Optional additional power via Micro USB for improved compatibility
  • Gold-plated connectors for reliable transmissions
  • Compliant with UL CMP-OF (Plenum) flame retardant standards
  • Pluggable gender for easy installation
  • Plug-and-play

Description

ATEN VE7834 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 60 m with  support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.
