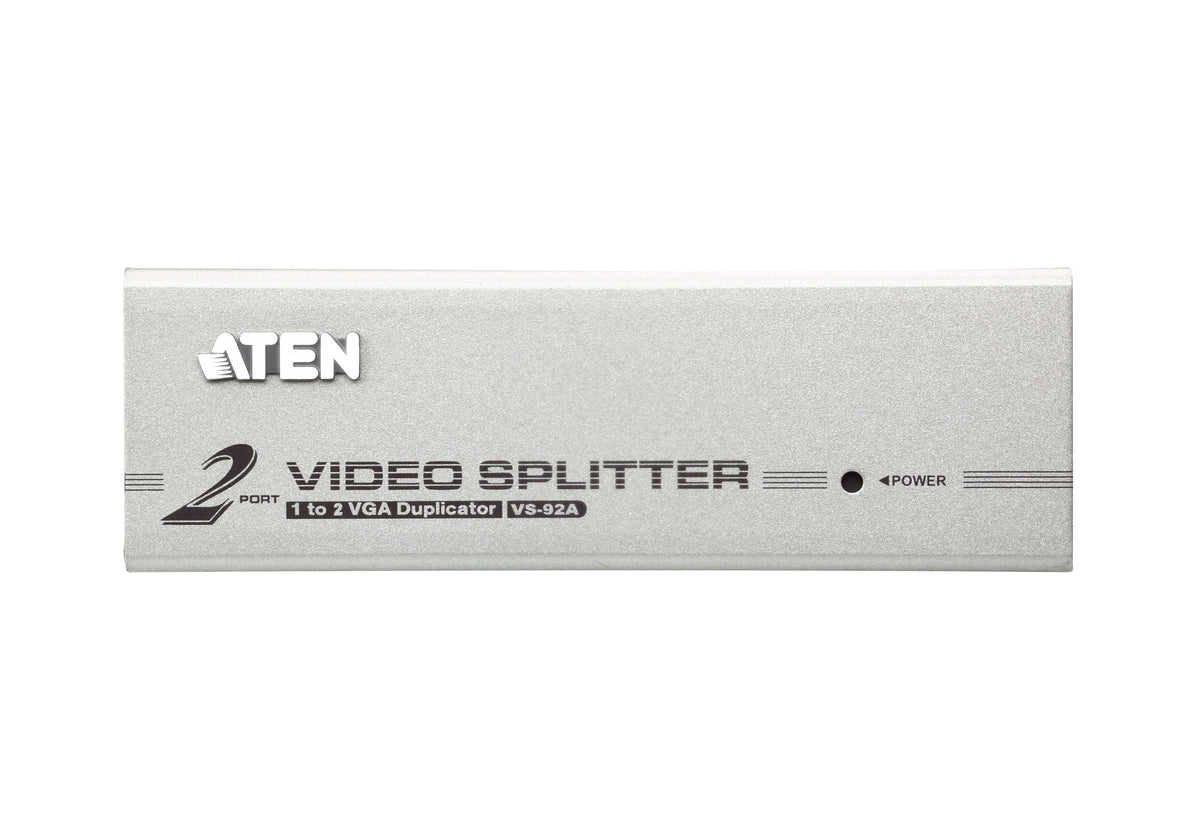

ATEN 2 PORT VGA SPLITTER(350MHZ) 0.64 kg

Regular price £23.49£28.19 (VAT Excl.)(VAT Incl.)

  • VGA Video Splitter
  • 2 Outputs
  • 30m Range
  • Cascadable 8 Displays
  • 350MHz Bandwidth
  • Broadcast/Monitor

Vendor:Aten SKU: VS92A Barcode: 4710423770928

Product Specification

  • Video Input: 1 x HDB-15 Male (Blue), 75 Ω, Max distance 1.8 m
  • Video Output: 2 x HDB-15 Female (Blue), 75 Ω
  • Max Bandwidth: 350 MHz
  • Max Resolution: Up to 1920 x 1440
  • Max Distance: Up to 30 m
  • Power: 1 x DC Jack, DC9V: 1.15W (5 BTU/h)
  • Operating Temperature: 0–50°C; Storage Temperature: -20–60°C
  • Humidity: 0–80% RH, Non-Condensing
  • Housing: Metal; Weight: 0.42 kg (0.93 lb)
  • Dimensions (L x W x H): 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.)
  • Carton Lot: 20 pcs

Box Content

  • 1x 2-Port Video Splitter
  • 1x 0AD6-1909-03EG Power Adapter
  • 1x User Instructions

Documents

Technical Features

  • One video input to 2 video outputs
  • Cascadable to 3 levels, supporting up to 8 video signals
  • Supports 350 MHz bandwidth
  • Long-distance transmission up to 30 m*
  • Superior video quality: 1920 x 1440 @ 60Hz
  • DDC, DDC2, DDC2B compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • All-metal casing for durability

Description

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
