Sold out

2N 9160501

£738.27£885.92 (VAT Excl.)(VAT Incl.)


  • 8 I/Os with supervised inputs and configurable levels
  • 8 form C relays

    •
    Vendor:2N SKU: 9160501 Barcode: 7331021049895

    Product Specification
    • Interfaces:
      Digital I/O: 8x I/O, 40V, open drain, max 100mA
      Relays: 8x form C relays, NO/NC contacts, max 1A, 48V
      Connectors: 1x RJ45 10BASE-T/100BASE-TX, 1x DC IN, 2x DC out, 8x inputs/outputs, 8x relays, 1x tamper switch
    • Network:
      Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X, digest authentication
    • Power Supply:
      Power In: 28V, 26W
      PoE: 802.3af (Class 0–12.95 W)
      Power Out: 12V

    Box Content

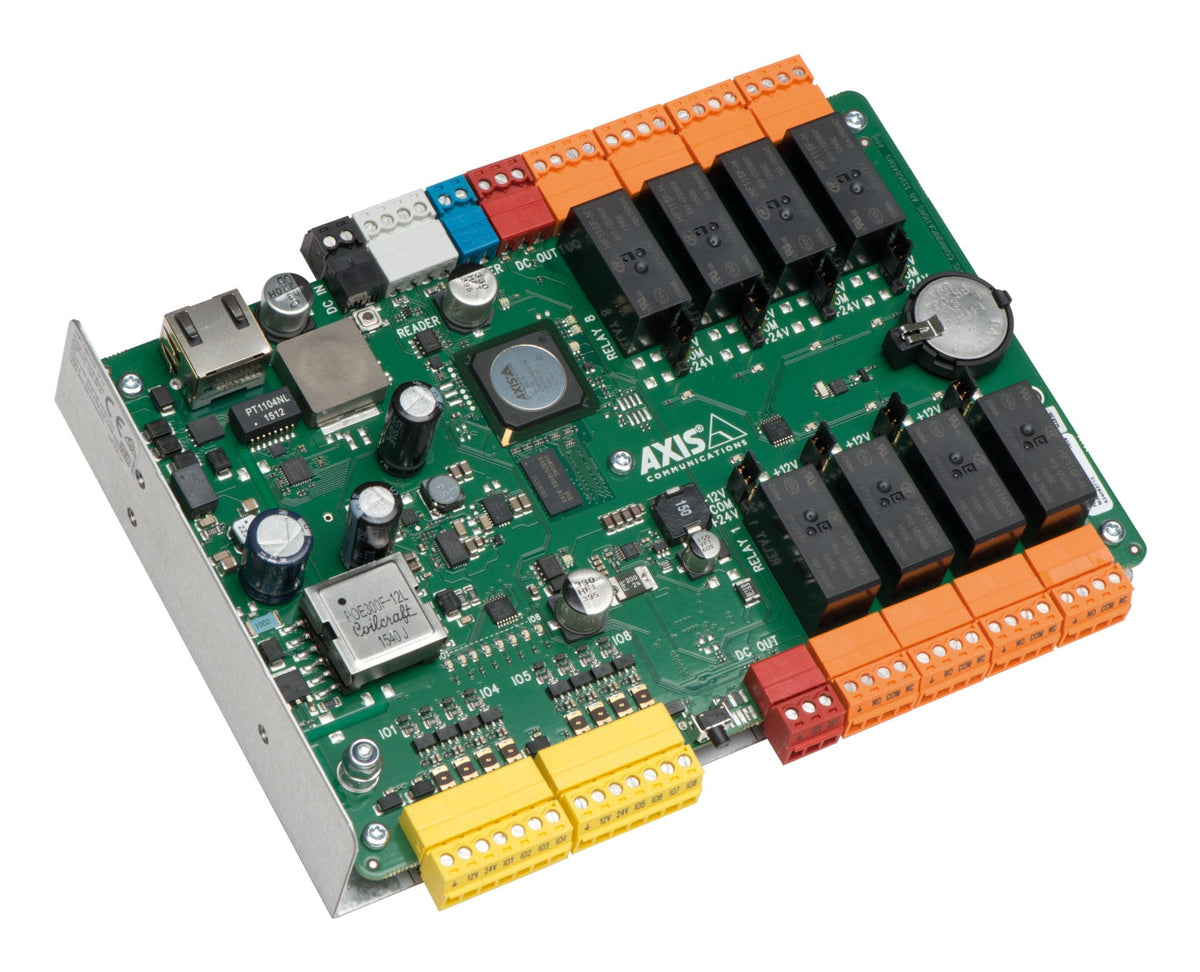

    • AXIS A9188 Network I/O Relay Module for lifts
    • Connector kit
    • jumper kit
    • TORX® Key TR20
    • Installation guide

    Documents

    Datasheet

    Technical Features

    • 8 I/Os with supervised inputs and configurable levels
    • 8 form C relays
    • 12 and 24 V DC output
    • PoE+ or 12 and 24 V DC input
    • Open API for software integration, including VAPIX

    Description

    The relay is part of the lift access control solution and is dedicated exclusively to this purpose. One relay can control up to 8 floors and you can connect up to 8 AXIS A9188 relays for lifts to one 2N IP intercom or access unit. It means the solution is suitable for up to 64 floors. See our FAQ section for information on how to connect the AXIS A9188 Network I/O Relay Module for lifts.
