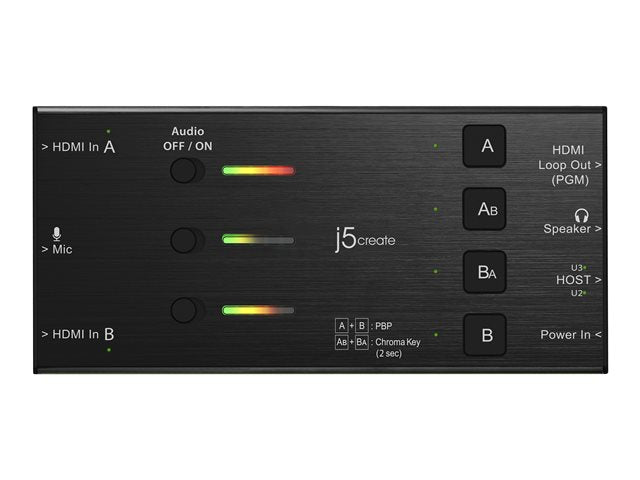

J5CREATE DUAL HDMI VIDEO CAPTURE 0.42 kg

Regular price £87.89£105.47 (VAT Excl.)(VAT Incl.)

  • LED activity indicator
  • Flexible audio connection

Vendor:j5create SKU: JVA06-N Barcode: 4712795085563

Product Specification

  • Interface type: USB-C 3.0
  • Video input: HDMI input, HDMI output
  • Model: j5create JVA06-N
  • Digital video capture speed: 60 frames per second
  • Dimensions (WxDxH): 13.46 cm x 6.37 cm x 1.84 cm
  • Weight: 172 g
  • Device type: Video capture adapter
  • Minimum operating temperature: 0 °C
  • Maximum operating temperature: 45 °C
  • Width: 13.46 cm
  • Depth: 6.37 cm

Box Content

  • j5create JVA06-N - video capture adapter - USB-C 3.0

Technical Features

  • Video input: Dual HDMI input for capturing 2 channels
  • Recording interface: Full HD video and audio high performance record/playback through USB-C 3.1 Gen1
  • Capture quality: Uncompressed 1080p @ 60 FPS capture via HDMI 1.3a
  • Loop out: Supports 1080p 60 HDMI loop out (PGM out)

  • Screen modes: 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)
  • Controls: Easily switch between different screen modes and adjust transition effects with built-in buttons | Directly activate Chroma Key features | Adjustable segmented window arrangements in PBP mode

  • Audio: Flexible audio connection via HDMI or external audio with 3.5 mm mic-in and speaker out | 3 individual audio mixer on/off switches supported | 3 channel volume indicators

  • Mounting: Easy DSLR attachment with 2 cold shoe adapters (included)
  • Power: Supports USB-C Power Delivery 3.0
  • Standard: UVC standard, plug & play

  • Indicators: LED activity indicator | HDMI IN | USB Link | Volume Unit

Description

The JVA06 Dual HDMI Video Capture allows users to capture uncompressed 1080p video from two HDMI sources simultaneously and customize the content in real time. Whether you're live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.
