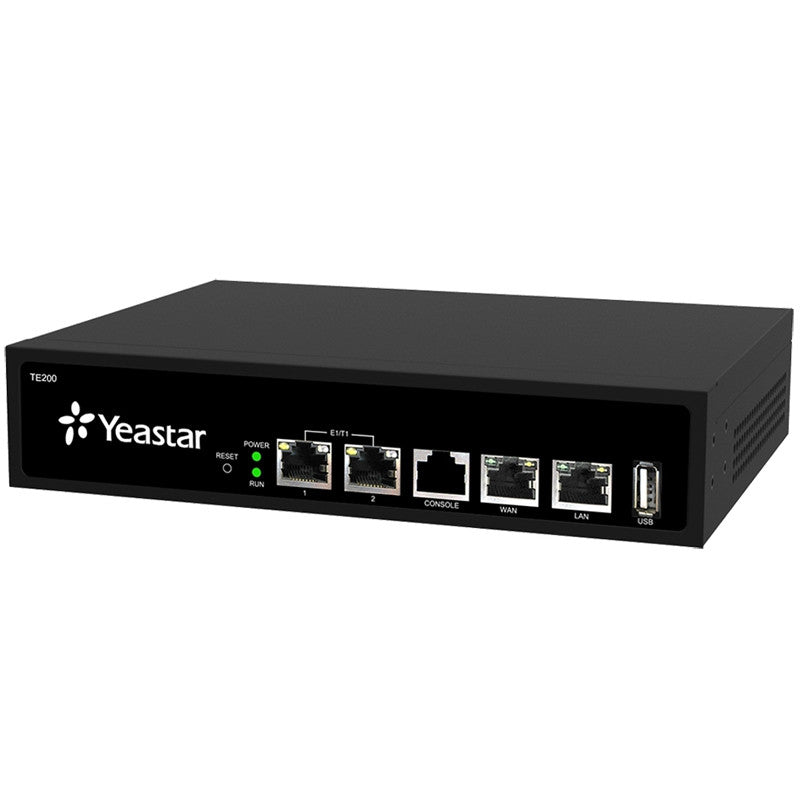

YEASTAR TE200 2 PORT PRI GATEWAY (60 CH)
Enterprise PRI to VoIP Bridge
Product Specification
Box Content
Documents
Overview
The Yeastar TE200 PRI Gateway delivers enterprise‑level telephony integration by connecting two ISDN PRI interfaces to modern VoIP systems. With two PRI ports providing a total of 60 B‑channels (E1/T1), it supports multiple simultaneous voice calls and robust call handling, ideal for medium to large organizations, call centers, and service providers. The gateway supports SIP protocols and a wide range of voice codecs to ensure quality and compatibility with IP‑PBX platforms including Yeastar, Asterisk, 3CX, and other SIP systems. Advanced features such as echo cancellation, flexible dial plans, T.38 fax support, and comprehensive signaling options enhance communication reliability. Web‑based configuration and remote management simplify deployment and maintenance, making it a scalable solution for businesses migrating from legacy ISDN infrastructure to VoIP.
Technical Features
- Brand: Yeastar
- Model: TE200 PRI Gateway
- Interface: 2 × PRI Ports (E1/T1)
- Total B‑Channels: 60 (30 per PRI port)
- VoIP Protocols: SIP (RFC3261)
- Audio Codecs: G.711, G.722, G.729, GSM, iLBC
- Fax Support: T.38 Fax over IP
- Echo Cancellation: ITU‑T G.168
- SIP Transport: UDP, TCP, TLS, SRTP
- Network: DHCP, VLAN, Static IP
- Management: Web GUI, Remote Provisioning
- Security: Firewall, TLS & SRTP Encryption
- Power Supply: AC 100–240V
- Dimensions: Standard Rackmount/ Desktop Form Factor
- Operating Temperature: 0°C to 40°C
