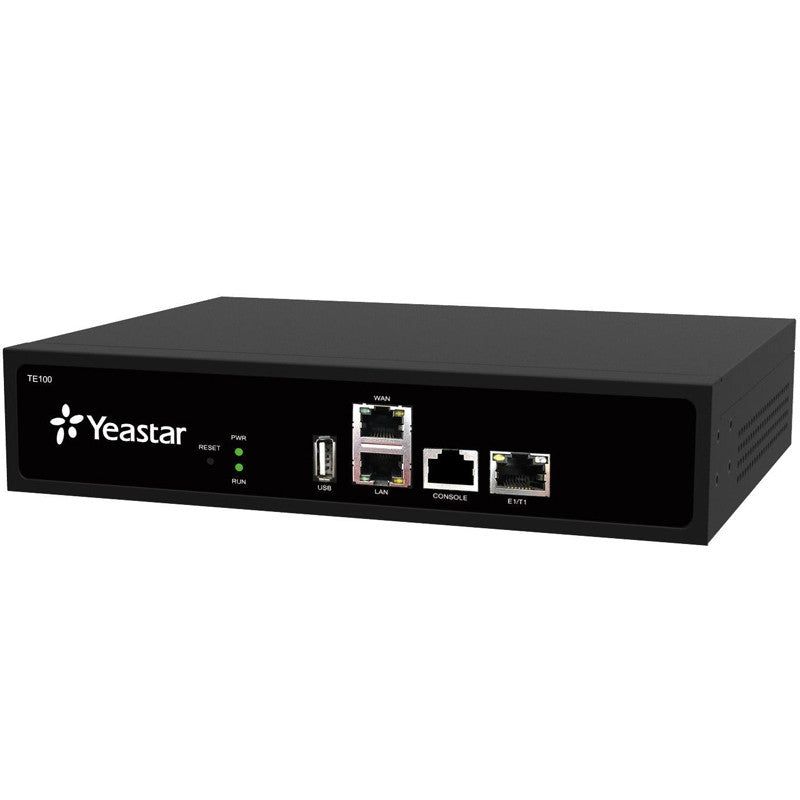

YEASTAR TE100 1 PORT PRI GATEWAY (30 CH)
Bridge PRI to VoIP Seamlessly
Product Specification
Box Content
Documents
Overview
The Yeastar TE100 PRI Gateway provides a powerful interface between legacy ISDN PRI telephone trunks and modern VoIP infrastructures, making it ideal for enterprises and service providers transitioning to IP telephony. Featuring a single PRI port with 30 B‑channels (PRI 30), it allows multiple simultaneous voice calls over a T1/E1 PRI connection. The gateway supports SIP protocols and advanced codecs to ensure high voice quality and interoperability with IP‑PBX systems including Yeastar, Asterisk, and third‑party SIP platforms. Built‑in support for echo cancellation, flexible dial plan routing, and comprehensive signaling options ensures reliable and efficient call handling. With web‑based configuration and remote management tools, installation and system maintenance are straightforward. This gateway is suited for businesses requiring scalable, high‑capacity connectivity between traditional ISDN networks and VoIP environments.
Technical Features
- Brand: Yeastar
- Model: TE100 PRI Gateway
- Interface Type: 1 × PRI Port (30B Channels)
- ISDN Standard: E1 (PRI) / T1 (Optional)
- Total Channels: 30 B‑Channels
- VoIP Protocols: SIP (RFC3261)
- Audio Codecs: G.711, G.722, G.729, GSM, iLBC
- Echo Cancellation: ITU‑T G.168
- SIP Transport: UDP, TCP, TLS, SRTP
- Fax Support: T.38 Fax over IP
- Network Features: VLAN, DHCP, DNS, Static IP
- Management Interface: Web GUI
- Power Supply: AC 100–240V
- Dimensions: Standard Rackmount / Desktop Form Factor
- Operating Temperature: 0°C to 40°C
