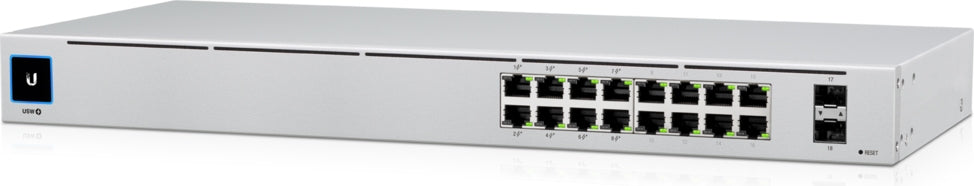

Ubiquiti USW-16-POE Gen 2, AC/DC, Internal, 60W, 16-Port Switch
- Silent Smart Network Switching
Product Specification
Box Content
Documents
Overview
The Ubiquiti UniFi Switch 16 PoE Gen 2 (USW-16-POE) is engineered to deliver reliable Layer 2 switching performance with centralized network management for professional environments. Equipped with 16 Gigabit Ethernet ports, including PoE-enabled interfaces, the switch is ideal for powering UniFi access points, VoIP phones, IP cameras, and other PoE-compatible devices. The integrated 60W PoE budget supports flexible deployment while reducing the need for additional power injectors. Designed with a fanless cooling architecture, the switch operates silently, making it suitable for office spaces, retail environments, and meeting rooms. A compact metal enclosure and integrated touchscreen status display provide a modern professional appearance and easy monitoring. Managed through the UniFi Network Controller, the switch supports VLANs, traffic monitoring, port management, and advanced network configuration features. Its combination of performance, simplicity, and scalability makes it an excellent solution for growing business networks.
Technical Features
- Product Type: Managed Layer 2 Switch
- Brand: Ubiquiti
- Model: USW-16-POE
- Series: UniFi Gen 2
- Total Ethernet Ports: 16 × Gigabit RJ45
- PoE Ports: 8 × 802.3af/at PoE+
- Non-PoE Ports: 8 × Gigabit RJ45
- Total PoE Budget: 60W
- SFP Ports: 2 × 1G SFP
- Switching Capacity: 36Gbps
- Forwarding Rate: 26.78Mpps
- Management Type: UniFi Network Controller
- Cooling Design: Fanless Silent Operation
- Display: 1.3-inch LCM Touchscreen
- Power Supply: Internal AC/DC Power Supply
- Layer Support: Layer 2
- Rackmount Support: Yes
- Housing Material: Metal Enclosure
- Application: SMB & Enterprise Edge Networking
