Ubiquiti Ethernet, 2x LAN, 2x WAN, 2GB DDR4, 1U Rack
- Enterprise Security Without Limits
Product Specification
Box Content
Documents
Overview

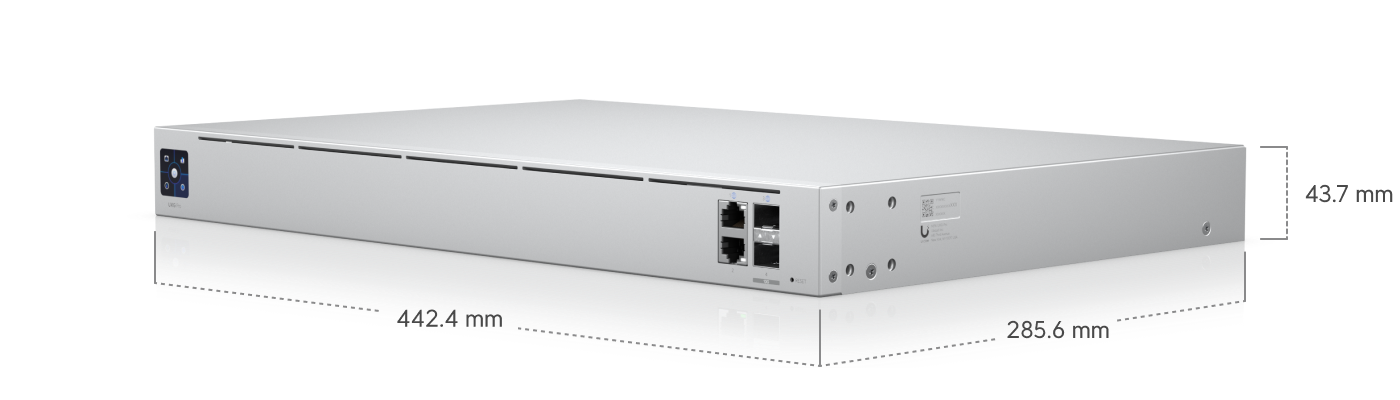

The Ubiquiti UXG-PRO is engineered to provide enterprise-class routing, firewall protection, and network security management for demanding business infrastructures. Designed in a professional 1U rackmount form factor, the gateway integrates seamlessly into modern server rooms and structured network cabinets. It features dual WAN interfaces for failover and redundancy support, alongside dual LAN interfaces that deliver high-speed connectivity for bandwidth-intensive applications and enterprise traffic management. Powered by a quad-core processor with 2GB DDR4 memory, the gateway supports advanced UniFi security services including Deep Packet Inspection (DPI), Intrusion Prevention and Detection Systems (IPS/IDS), VLAN segmentation, and layered firewall configuration. Integrated UniFi Network Controller support enables centralized cloud-based monitoring and management across the entire UniFi ecosystem. The UXG-PRO is ideal for enterprises, campuses, managed service providers, and high-performance commercial networks requiring secure, scalable, and reliable connectivity.
Technical Features
- Product Type: Enterprise Security Gateway
- Brand: Ubiquiti
- Model: UXG-PRO
- Series: UniFi Next-Generation Gateway Pro
- Form Factor: 1U Rackmount
- Processor: Quad-Core CPU
- Processor Speed: 1.7 GHz
- Memory: 2 GB DDR4 RAM
- WAN Ports: 2 × WAN
- LAN Ports: 2 × LAN
- RJ45 Ports: Gigabit Ethernet
- SFP+ Ports: 10G SFP+ Connectivity
- Management Platform: UniFi Network Controller
- Security Features: DPI, IDS/IPS, Firewall
- Cooling System: Integrated Active Cooling
- Display: 1.3-inch Touchscreen
- Power Supply: Internal AC Power Supply
- Input Voltage: 200–240V AC
- Power Consumption: Approx. 50W
- Operating Temperature: -10°C to 40°C
- Mounting Type: Rackmount Installation
