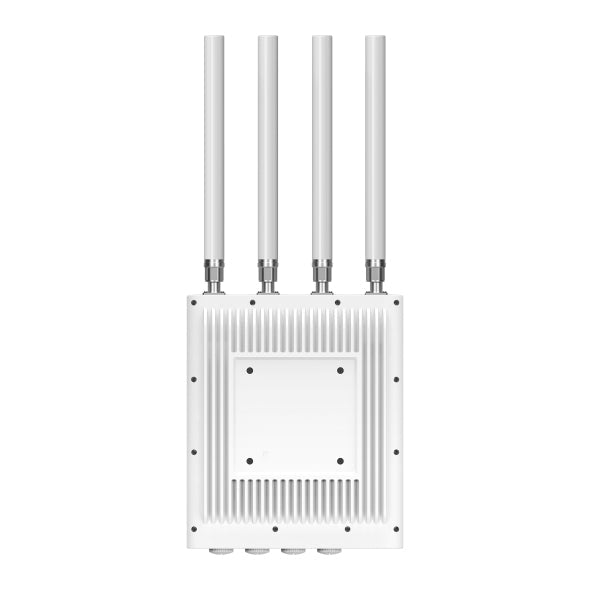

TP-LINK WI-FI 6 AP EAP668-OUTDOOR HD

The TP‑Link Wi‑Fi 6 AP EAP668‑Outdoor HD is a powerful and weather‑proof outdoor access point designed for demanding environments like parks, campuses, stadiums, and large outdoor venues. It delivers AX3600 dual‑band Wi‑Fi 6 performance with combined speeds up to 3.6 Gbps, supporting over 1,000 connected clients simultaneously — ideal for high‑density deployments. With an IP68‑rated enclosure, 6 kV lightning protection, and an extended operating temperature range, this AP can withstand harsh weather conditions. It also features multiple high‑performance ports including 2.5G PoE‑In, Gigabit PoE‑Out, and a 10G SFP+ slot for flexible wired backhaul or fiber connectivity, along with advanced management via TP‑Link’s Omada SDN platform, seamless roaming, mesh networking, and Bluetooth support.

• Model: EAP668‑Outdoor HD
• Wireless standard: IEEE 802.11 a/b/g/n/ac/ax (Wi‑Fi 6)
• Max data rate: ~1148 Mbps (2.4 GHz) + ~2402 Mbps (5 GHz) (AX3600) :contentReference[oaicite:2]{index=2}
• Ports: 1× 10G SFP+, 1× 2.5G PoE‑In, 1× Gigabit PoE‑Out :contentReference[oaicite:3]{index=3}
• Antennas: 4× external dual‑band omni, 6 dBi :contentReference[oaicite:4]{index=4}
• Client capacity: 1000+ devices :contentReference[oaicite:5]{index=5}
• Weather protection: IP68; 6 kV lightning protection :contentReference[oaicite:6]{index=6}
• Operating temp: −40 °C to +70 °C :contentReference[oaicite:7]{index=7}
• Management: Omada SDN (controller/app/cloud) :contentReference[oaicite:8]{index=8}
