Titan HAY-PSUMULTI-5A 12V UPTO 9WAY 5A
Product Specification
Box Content
Documents
Overview

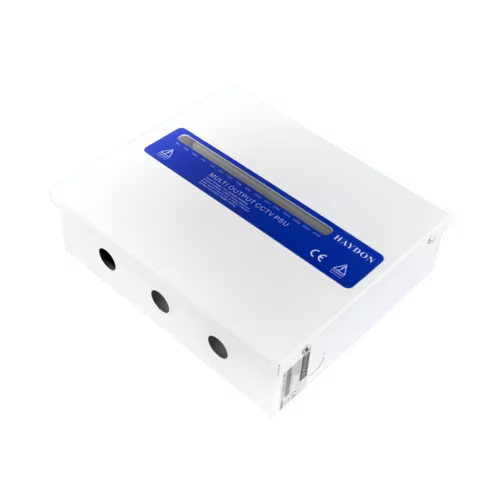

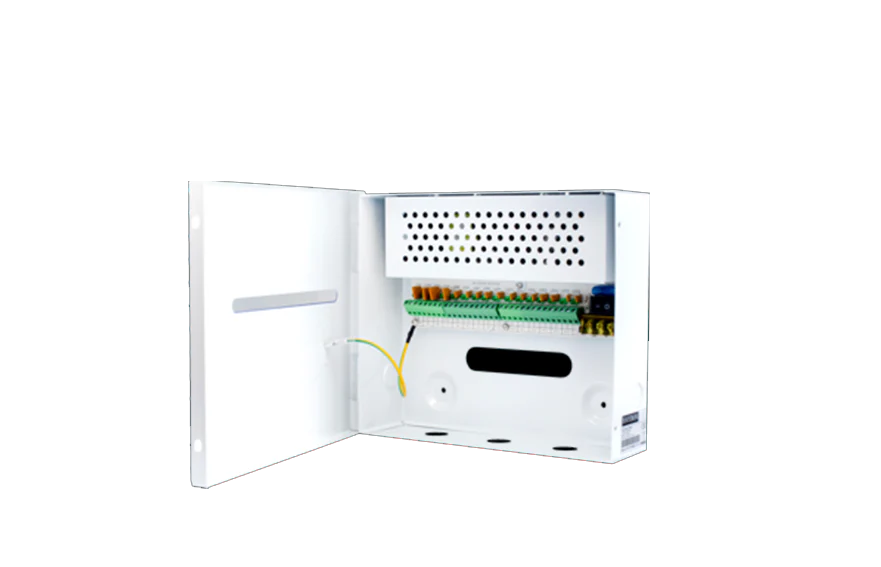

The Haydon HAY-PSUMULTI-5A is a robust multi-way CCTV power supply engineered for professional security system installations. Housed in a durable metal enclosure, it distributes regulated 12V DC power across up to nine devices such as CCTV cameras or accessories. Each output includes auto-reset PTC fuse protection and LED indicators, allowing easy monitoring and eliminating the need for fuse replacement after overloads. The unit delivers a total output of 5 amps, with dedicated current ratings per channel to ensure balanced and safe power distribution. Designed for installers, it features surge protection, an internal power switch, and a low-noise regulated output for stable performance in commercial or residential surveillance environments.
Technical Features
- Brand: Haydon
- Model: HAY-PSUMULTI-5A
- Output Voltage: 12V DC
- Total Output Current: 5A Maximum
- Number of Outputs: Up to 9 Outputs
- Output Rating 1–4: Up to 1.6A each
- Output Rating 5–9: Up to 1.1A each
- Protection: Auto-reset PTC Fuse per Output
- Enclosure: Metal Box (White Powder Coated Steel)
- Dimensions: 180 × 165 × 52 mm
- Operating Temperature: -10°C to 50°C
- Compliance: CE & RoHS
