HAY-PSUMULTI-10A 12v UPTO 16WAY 10A
Product Specification
Box Content
Documents
Overview

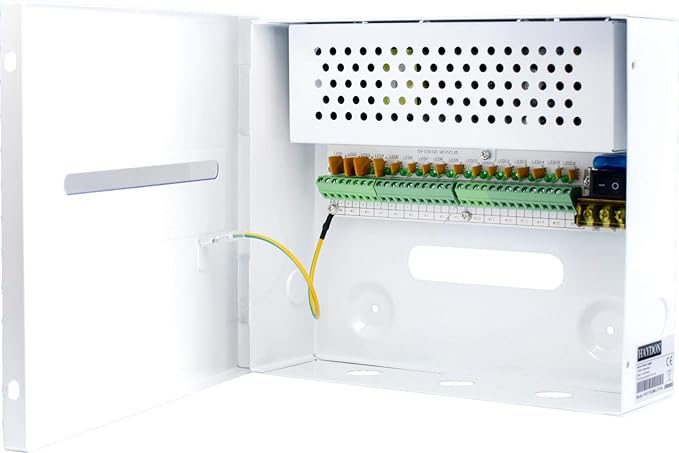

The Haydon HAY-PSUMULTI-10A is a high-performance multi-way CCTV power supply engineered for professional security installations requiring stable and centralized power management. Built inside a durable metal enclosure, it distributes regulated 12V DC power across up to sixteen devices such as CCTV cameras, access control equipment, or surveillance accessories. Each output features auto-reset PTC fuse protection, eliminating fuse replacement after overload or short circuit conditions while ensuring system safety. LED indicators allow installers to monitor output status easily, while surge protection safeguards connected equipment. With low-noise regulated output and an internal power switch, this PSU is ideal for commercial, residential, and large-scale CCTV deployments.
Technical Features
- Brand: Haydon
- Model: HAY-PSUMULTI-10A
- Output Voltage: 12V DC
- Total Output Current: 10A Maximum
- Number of Outputs: Up to 16 Outputs
- Output Rating (1–4): Up to 1.6A each
- Output Rating (5–16): Up to 1.1A each
- Protection: Auto-Reset PTC Fuse per Channel
- Indicators: LED Status Indicator per Output
- Enclosure: White Powder-Coated Steel Metal Box
- Dimensions: 240 × 205 × 65 mm
- Operating Temperature: -10°C to 50°C
- Compliance: CE & RoHS
