Digium 1A8B01F

Digium 1A8B01F

£2.40 GBP
Sale price: £2.40 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Connect Asterisk-based systems to analog phone lines
Out of stock
EAN: 797734602432
SKU: 1A8B01F
Vendor: Digium
Order within xx hours for delivery on
Quantity

Overview

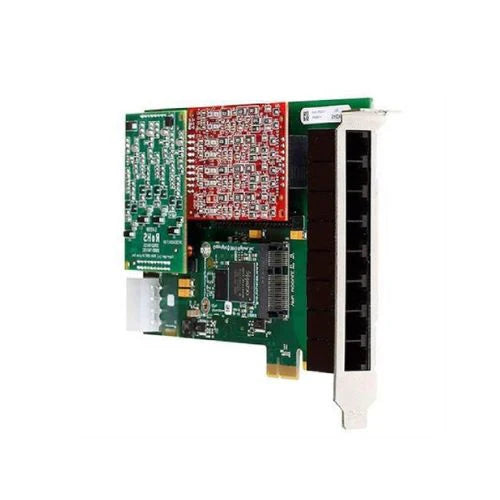

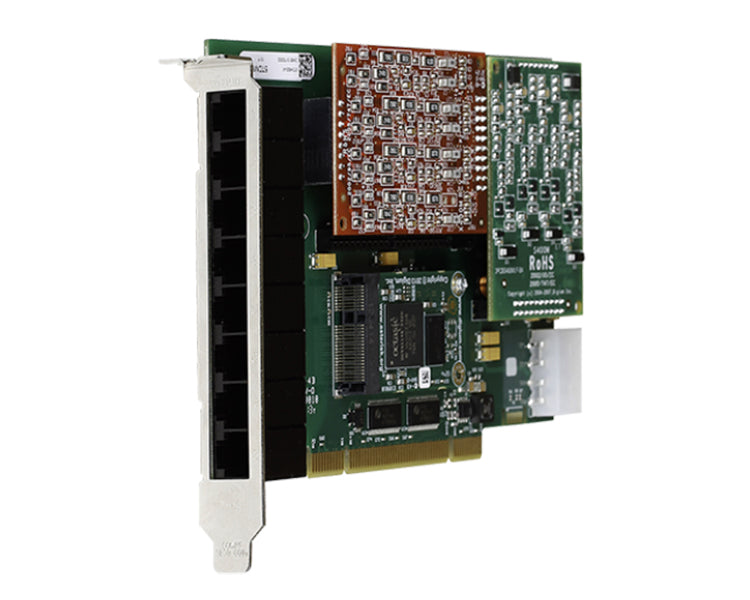

The Digium 1A8B01F from the A8 Series is an 8-port modular analog PCI-Express x1 card designed to house FXO and FXS modules with hardware Echo Cancellation for carrier-grade audio quality. It allows attachment of up to two quad-port modules or four single-port modules, which can be swapped or removed as needed.

Technical Features
  • Analog Ports: One (1) to eight (8) analog ports
  • Bus Architecture: PCI or PCI Express bus architectures
  • Module Support: Combine line (FXO) and station (FXS) modules
  • Expansion Capacity: Accepts up to two (2) quad-port modules or up to four (4) single-port modules
  • Echo Cancellation: Optional DSP-based carrier-grade echo cancellation module
  • System Interface: 32-bit 33MHz
  • Signaling: Loop Start or Kewl Start signaling
  • Operating Temperature: 0° to 50° C
  • Audio Technology: Digium patented VoiceBus™ technology for better audio
  • Guarantee: 30-day 100% satisfaction money-back guarantee
  • Warranty: 5-year warranty
  • Asterisk Requirement: DAHDI 2.7 or later required
  • Switchvox Requirement: Switchvox 5.8.1 or later required (Coming soon)
